Please read the notes for firmware update before updating the firmware.

Rev. 1.03.029

• CS2 gas to standard response list added
• added gas input load indicator
• compensations and corrections for 11.8eV lamp added

 Device Firmware Rev. 1.03.029

Rev. 1.02.023

• recognition of optional flow sensor

 Device Firmware Rev. 1.02.023

Rev. 1.02.019

• extended lamp failure detection based at supported hardware

 Device Firmware Rev. 1.02.019

Rev. 1.02.018

• improved humidity correction
• new menuitem to check the calibration

 Device Firmware Rev. 1.02.018

Rev. 1.02.014

• initial firmware

Rev. 1.02.005

• easy creation of reports for online measurement data or stored data

 Lab.Pid.Control.Installer.1.02.005.exe

 USB driver

 Report Templates

Rev. 1.02.002

• initial software

 Lab.Pid.Control.1.02.002.exe

The LAB PID is a stationary Photoionisation measuring system for permanent monitoring and measurement of a broad range of total volatile organic compounds (VOC). A hollow cathode lamp (10.6 eV) will be used as ionization source. This lamp provides a high stable light output and a guarantied life time for more than 5000 hours (typical up to 10000 hours).

• Measurement range 0…2000 ppm (ISOBUTEN equivalent)
• Digital interface RS232, RS-485
• Analog Interface 4…20mA
• 3 x Relay Outputs for signalization

The PIDS uses a hollow cathode lamp (10.6 eV) as ionization source. This lamp provides a high stable light output and a guarantied life time for more than 5000 hours ( typical up to 10000 hours ).

The digital interface provides the ability to read the readings and various status messages, as well as the calibration and configuration.

The RS485 interface increases the flexibility for use in industrial and laboratory environments.

The LabView driver makes it very easy to connect the LAB PID togeter with LabView.

Via the optional analog 4 .. 20mA, the wet compensated and linearized measured value is output in different areas.

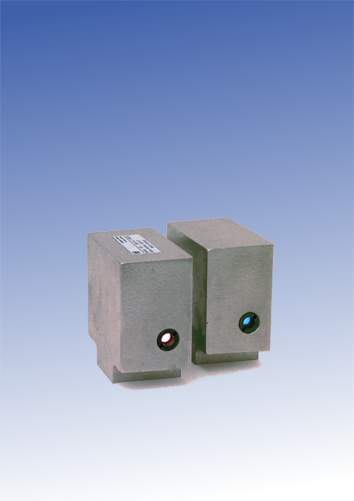

Die ACI fertigt in Zusammenarbeit mit seinen Partnern elektrodenlose Entladungslampen mit unterschiedlichen Gasfüllungen im Niederdruckbereich. Die Glaskörper mit speziellen Austrittsfenstern ( Suprasil, MgF2 ) befinden sich in einem vernickelten Al-Gußgehäuse in EMV-dichter Ausführung.
Ein Gasreservoir ermöglicht eine Betriebsdauer von bis zu 20.000 Stunden. Ein interner Zündmechanismus gewährleistet ein sicheres Zündverhalten.

Folgende Gasfüllungen werden angeboten :

• N2:O2 Gasgemisch
• Quecksilber
